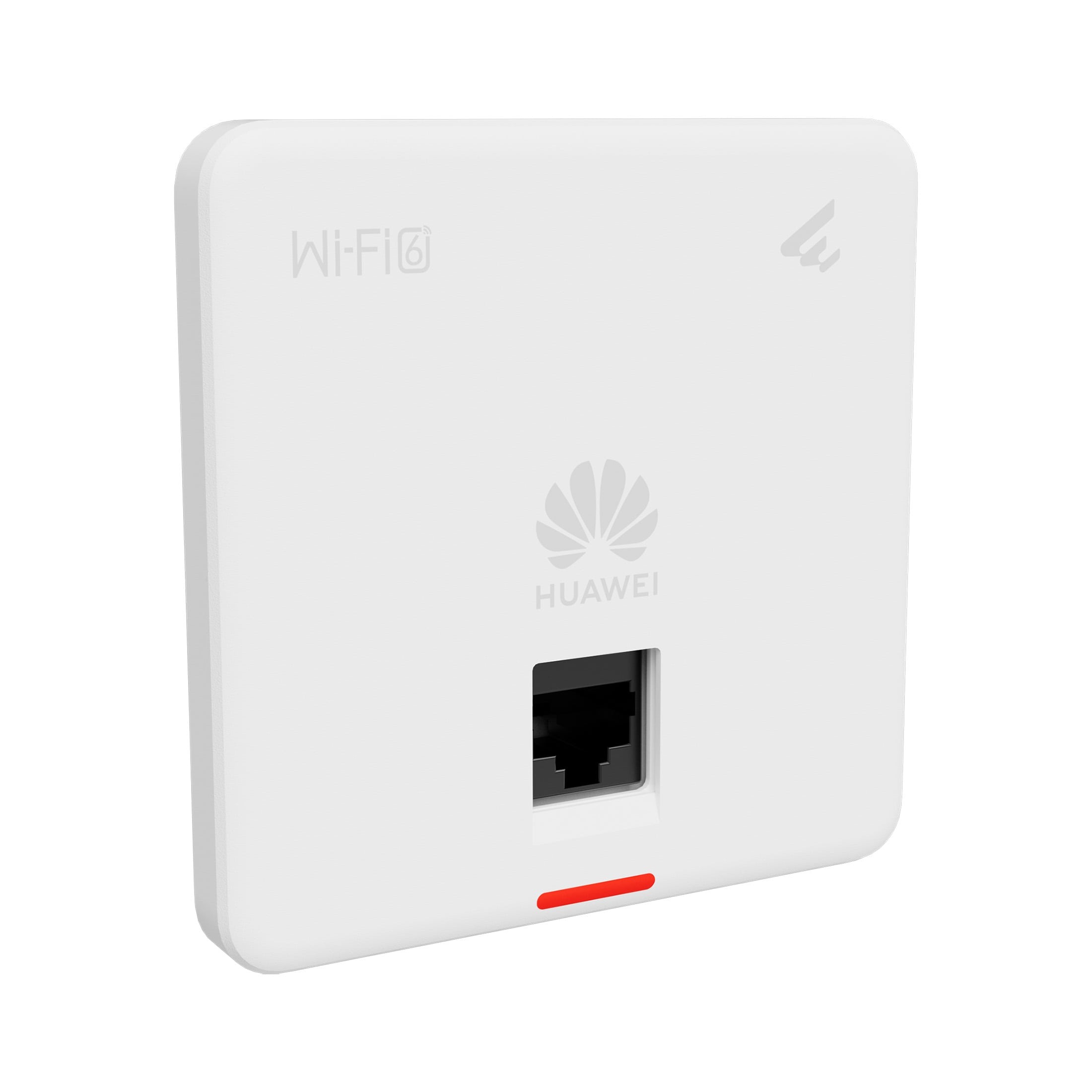

Huawei eKit AP160 Wireless LAN Equipment Dual-Radio Mode PoE Access Point

The Huawei eKitEngine AP160 is a state-of-the-art Wi-Fi 6 (802.11ax) wall-plate access point designed to deliver high-speed, reliable wireless connectivity in enterprise and commercial environments. Its dual-radio design, ultra-thin profile, and intelligent features make it an ideal solution for modern network deployments.

Product Features

Wi-Fi 6 Technology: Supports the latest Wi-Fi 6 standard (802.11ax), providing enhanced performance and efficiency.

Dual-Band Operation: Simultaneously operates on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, achieving a combined device rate of up to 1.775 Gbps.

High Concurrency: Capable of supporting a large number of concurrent users, making it ideal for high-density environments.

Compact Design: Features an ultra-thin 8 mm panel, facilitating flexible deployment options.

Power over Ethernet (PoE): Simplifies installation by delivering power and data over a single Ethernet cable.

Built-in Smart Antennas: Automatically adjust coverage direction and signal strength based on intelligent algorithms, ensuring stable and accurate coverage.

Flexible Deployment: Supports various deployment modes, including Fit, Fat, and cloud management, allowing for scalable and efficient network expansion.

Enhanced Security: Offers robust security features such as WPA3, 802.1X authentication, and MAC address filtering to protect the network.

Technical Specifications

• Wireless Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands: 2.4 GHz and 5 GHz
• MIMO Configuration: 2×2 on both 2.4 GHz and 5 GHz bands
• Maximum Data Rate: Up to 1.775 Gbps (575 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz)
• Ethernet Ports: 1 × Gigabit Ethernet uplink port, 1 × Gigabit Ethernet downlink port
• Power Supply: IEEE 802.3af/at Power over Ethernet (PoE)
• Dimensions: 86 mm × 86 mm × 8 mm
• Mounting: Designed to fit standard 86 mm × 86 mm junction boxes
• Operating Temperature: 0°C to 40°C
• Humidity: 5% to 95%, non-condensing
