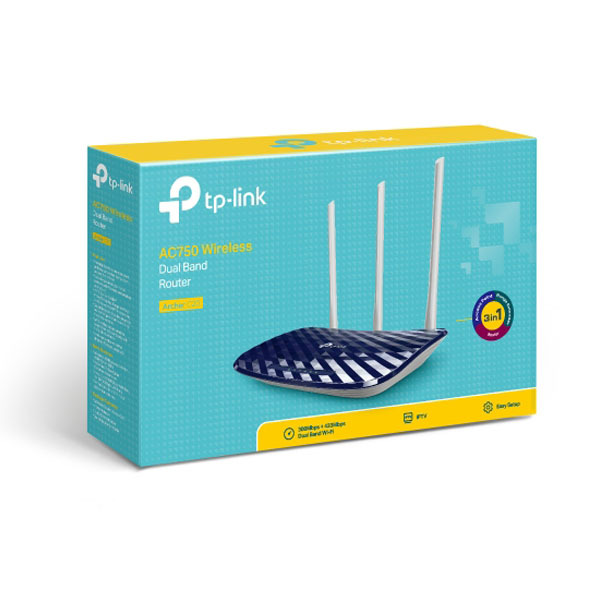

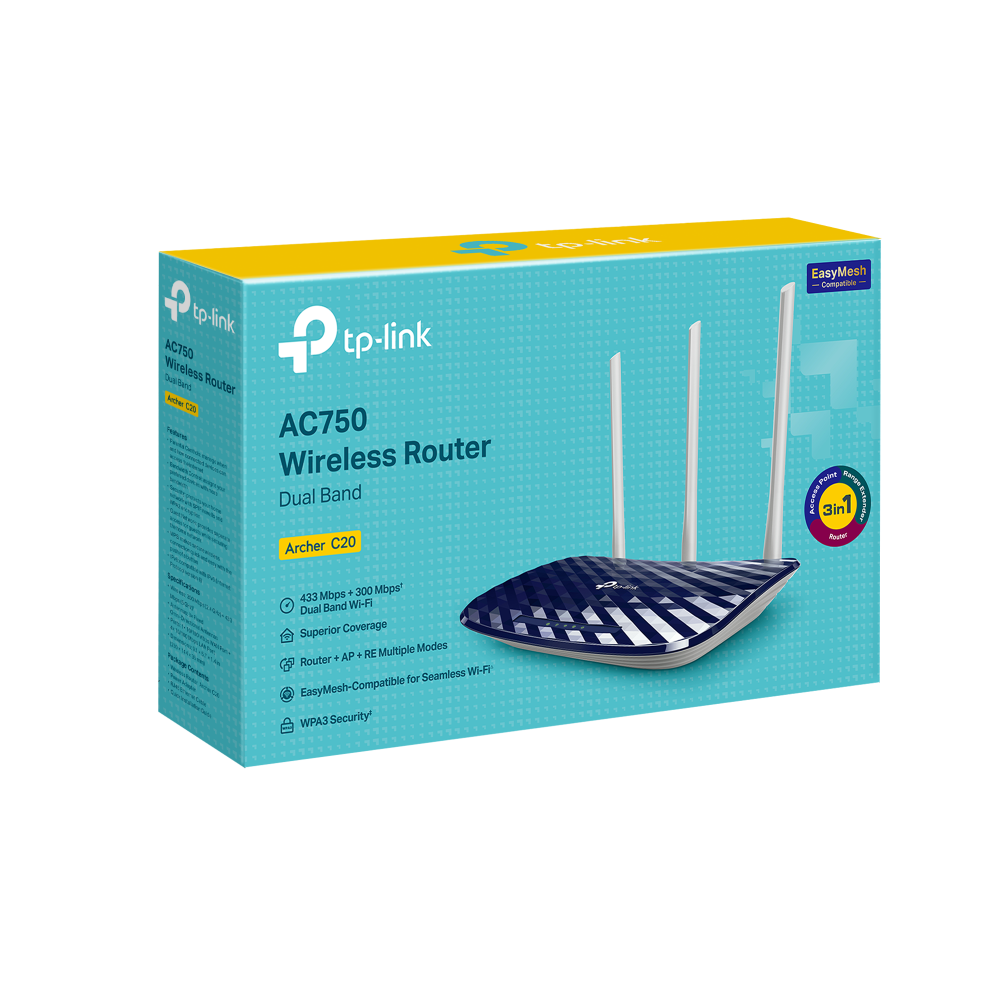

TP-Link Archer C20 AC750 Wireless Dual Band Router

TP-Link Archer C20 AC750 Wireless Dual Band Router is an affordable and reliable networking solution for homes and small offices. Supporting the 802.11ac Wi-Fi standard, it delivers combined speeds of up to 750 Mbps across dual bands, ensuring stable connections for browsing, streaming, and light online gaming. With three high-gain antennas for wider coverage, advanced security features, and easy management through the TP-Link Tether app, the Archer C20 is an excellent entry-level router for upgrading your wireless network.

Product Features

Fast Dual-Band Wi-Fi

Offers 300 Mbps on 2.4 GHz for basic tasks like web browsing and 433 Mbps on 5 GHz for smoother HD streaming and online gaming.

Enhanced Wireless Coverage

Equipped with three external fixed antennas to provide stable connections and wider coverage throughout your home.

Reliable Performance

Supports the latest 802.11ac standard, three times faster than wireless N, delivering a more efficient and stable wireless experience.

Guest Network Access

Allows you to set up a separate Wi-Fi network for guests, protecting your main network and personal data.

Advanced Security

Provides WPA/WPA2 encryption and access control to safeguard your network from unauthorized access.

Easy Setup and Management

The TP-Link Tether app makes it simple to set up, monitor, and manage your Wi-Fi directly from your smartphone.

Product Specifications

Hardware Features:

• Processor:
  • Single-Core CPU​
• Interfaces:
  • Four 10/100 Mbps LAN Ports​
  • One 10/100 Mbps WAN Port​
• Buttons:
  • WPS/Reset Button​
  • Wireless On/Off Button​
  • Power On/Off Button​
• External Power Supply:
  • 9VDC / 0.6A​
• Dimensions (W x D x H):
  • 9.1 × 5.7 × 1.4 inches (230 × 144 × 35 mm)
• Antenna Type:
  • Three fixed external antennas​

Wireless Features:

• Wireless Standards:
  • IEEE 802.11ac/n/a 5 GHz​
  • IEEE 802.11n/b/g 2.4 GHz​
• Frequency:
  • 2.4 GHz and 5 GHz​
• Signal Rate:
  • 5 GHz: Up to 433 Mbps​
  • 2.4 GHz: Up to 300 Mbps​
• Wireless Functions:
  • Enable/Disable Wireless Radio​
  • WDS Bridge​
  • WMM​
  • Wireless Statistics​
• Wireless Security:
  • 64/128-bit WEP​
  • WPA/WPA2​
  • WPA-PSK/WPA2-PSK encryption​

Software Features:

• Quality of Service (QoS):
  • WMM
  • Bandwidth Control​
• WAN Type:
  • Dynamic IP​
  • Static IP​
  • PPPoE​
  • L2TP​
  • PPTP​
• Management:
  • Access Control​
  • Local Management​
  • Remote Management​
• DHCP:
  • Server​
  • Client​
  • DHCP Client List​
  • Address Reservation​
• Port Forwarding:
  • Virtual Server​
  • Port Triggering​
  • UPnP​
  • DMZ​
• Dynamic DNS:
  • DynDns​
  • NO-IP​
• Access Control:
  • Parental Control​
  • Local Management Control​
  • Host List​
  • Access Schedule​
  • Rule Management​
• Firewall Security:
  • SPI Firewall​
  • Access Control​
  • IP & MAC Binding​
  • Application Layer Gateway​
• Guest Network:
  • 1× 5 GHz Guest Network​
  • 1× 2.4 GHz Guest Network
