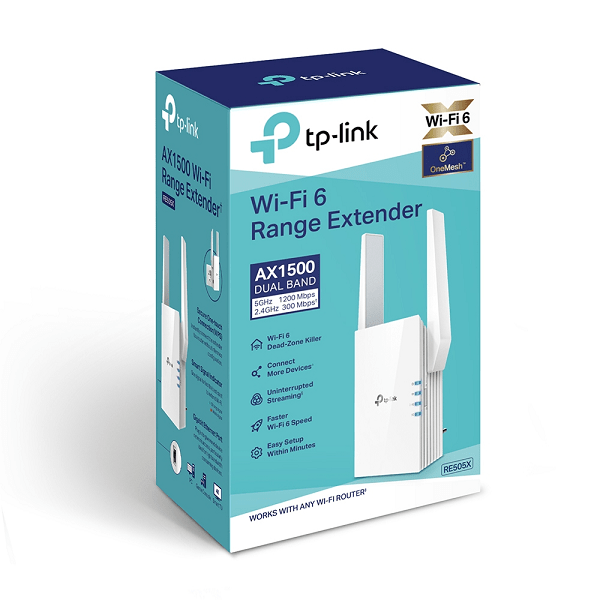

TP-Link AX1500 Wi-Fi 6 Range Extender (RE505X)

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender is a next-generation solution for eliminating dead zones and extending high-speed coverage across your home. With Wi-Fi 6 technology, it delivers faster speeds, greater capacity, and reduced network congestion for smoother streaming, online gaming, and browsing. Offering dual-band speeds of up to 1500 Mbps, the RE505X ensures reliable performance on multiple devices simultaneously. Its intelligent signal indicator simplifies placement, while a Gigabit Ethernet port provides stable wired connections. The extender also supports TP-Link OneMesh, enabling seamless roaming when paired with compatible TP-Link routers.

Product Features

Next-Generation Wi-Fi 6 Technology

Improves efficiency and capacity, offering faster speeds and reduced latency for an optimized online experience.

Dual-Band High-Speed Connectivity

Provides combined speeds of up to 1500 Mbps, with 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for versatile usage.

OneMesh Support

Works with compatible TP-Link routers to create a unified Wi-Fi network with seamless roaming throughout your home.

Wide Coverage Expansion

Powerful amplifiers and high-gain antennas deliver strong and stable Wi-Fi signals across multiple rooms.

Gigabit Ethernet Port

Offers a fast and reliable wired connection for devices like smart TVs, gaming consoles, and PCs.

Intelligent Signal Indicator

LED lights help identify the best placement for optimal Wi-Fi performance.

Access Point Mode

Turns a wired connection into a dual-band wireless hotspot, adding network flexibility.

Product Specifications

Hardware Features:

• Plug Type: US.​
• Standards and Protocols: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz.​
• Interface: 1× Gigabit Ethernet Port (RJ45).​
• Buttons: WPS Button, Reset Button.​
• Power Consumption: 10W.​
• Dimensions (W × D × H): 2.9 × 1.8 × 4.9 inches (74.0 × 46 × 124.8 mm).
• Antenna: 2 external high-gain antennas.​

Wireless Features:

• Frequency: 2.4 GHz and 5 GHz.​
• Signal Rate:
  • 2.4 GHz: Up to 300 Mbps.​
  • 5 GHz: Up to 1,200 Mbps.​
• Reception Sensitivity:
  • 5 GHz:
    • 11a 6 Mbps: -93 dBm.
    • 11a 54 Mbps: -75 dBm.
    • 11ac HT20 MCS0: -92 dBm.
    • 11ac HT20 MCS8: -70 dBm.
    • 11ac HT40 MCS0: -90 dBm.
    • 11ac HT40 MCS9: -66 dBm.
    • 11ac HT80 MCS0: -87 dBm.
    • 11ac HT80 MCS9: -62 dBm.
  • 2.4 GHz:
    • 11g 54 Mbps: -77 dBm.
    • 11n HT20 MCS7: -75 dBm.
    • 11n HT40 MCS7: -72 dBm.
• Wireless Modes: Range Extender, Access Point.​
• Wireless Functions:
  • Enable/Disable Wireless Radio.​
  • Wireless Statistics.​
• Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK encryptions.​
• Transmission Power:
  • CE: 2.4 GHz ≤20 dBm, 5 GHz ≤30 dBm.​
