TP-Link RE305 AC1200 Wi-Fi Range Extender

TP-Link RE305 AC1200 Wi-Fi Range Extender is a versatile device designed to eliminate Wi-Fi dead zones and expand coverage for seamless connectivity throughout your home or office. Offering dual-band speeds of up to 1200 Mbps, it ensures smooth HD streaming, online gaming, and fast browsing on multiple devices. With two powerful external antennas, an intelligent signal indicator, and a compact wall-plug design, the RE305 delivers strong performance while saving space. It can also function as a high-speed access point when connected via Ethernet, making it an all-in-one solution for extending and strengthening your network.

Product Features

Dual-Band Wi-Fi Performance

Delivers speeds of up to 1200 Mbps, with 867 Mbps on 5 GHz for high-bandwidth tasks and 300 Mbps on 2.4 GHz for everyday internet use.

Reliable Coverage Expansion

Two external antennas enhance signal strength, ensuring stable and extended Wi-Fi coverage across your home.

Intelligent Signal Indicator

LED lights guide you to the best placement for optimal coverage and performance.

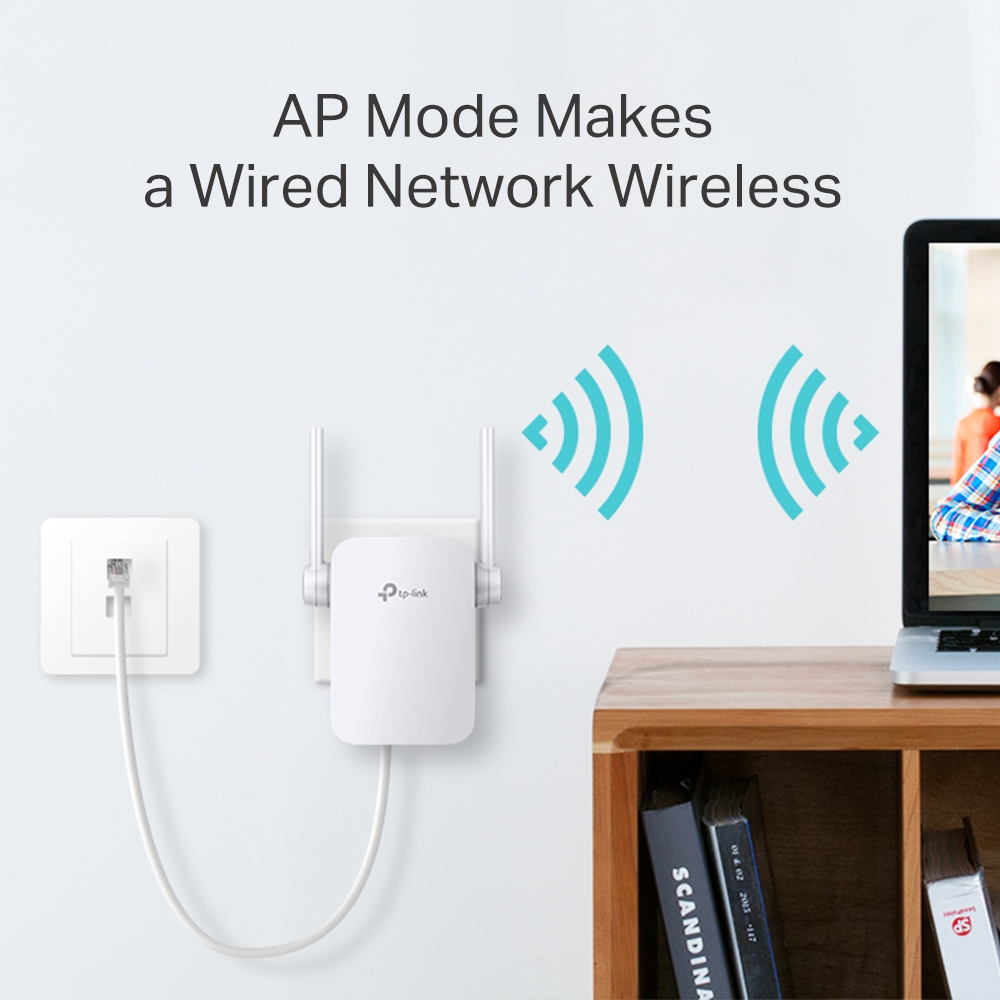

Access Point Mode

Easily turns a wired connection into a dual-band wireless access point for flexible networking.

Compact Wall-Plug Design

Space-saving design allows easy installation without clutter, ideal for any room layout.

Easy Setup and Control

Supports WPS one-button setup and can be managed conveniently via the TP-Link Tether app.

Product Specifications

Hardware Features:

• Plug Type: Available in EU, UK, and US versions.​
• Standards and Protocols: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b.​
• Interface: 1× 10/100Mbps Ethernet Port (RJ45).​
• Buttons: WPS Button, Reset Button.
• Power Consumption: 7.3W (maximum).​
• Dimensions (W × D × H): 3.1 × 3.0 × 3.0 inches (80 × 78 × 77 mm).​
• Antenna: 2 external antennas.​

Wireless Features:

• Frequency: 2.4 GHz and 5 GHz.​
• Signal Rate:
  • 2.4 GHz: Up to 300 Mbps.​
  • 5 GHz: Up to 867 Mbps.​
• Reception Sensitivity:
  • 5 GHz:
    • 11a 6 Mbps: -91 dBm@10% PER.
    • 11a 54 Mbps: -74 dBm@10% PER.
    • 11ac HT20 MCS8: -68 dBm@10% PER.
    • 11ac HT40 MCS9: -63 dBm@10% PER.
    • 11ac HT80 MCS9: -59 dBm@10% PER.
  • 2.4 GHz:
    • 11g 54 Mbps: -79 dBm@10% PER.
    • 11n HT20 MCS7: -77 dBm@10% PER.
    • 11n HT40 MCS7: -74 dBm@10% PER.
• Wireless Modes: Range Extender, Access Point.​
• Wireless Functions:
  • Wireless Statistics.​
  • Concurrent Mode boosts both 2.4 GHz and 5 GHz Wi-Fi bands.​
  • Access Control.​
  • LED Control.
  • Domain Login Function.
• Wireless Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK.​
• Transmission Power:
  • <17 dBm (2.4 GHz).​
  • <17 dBm (5 GHz).
