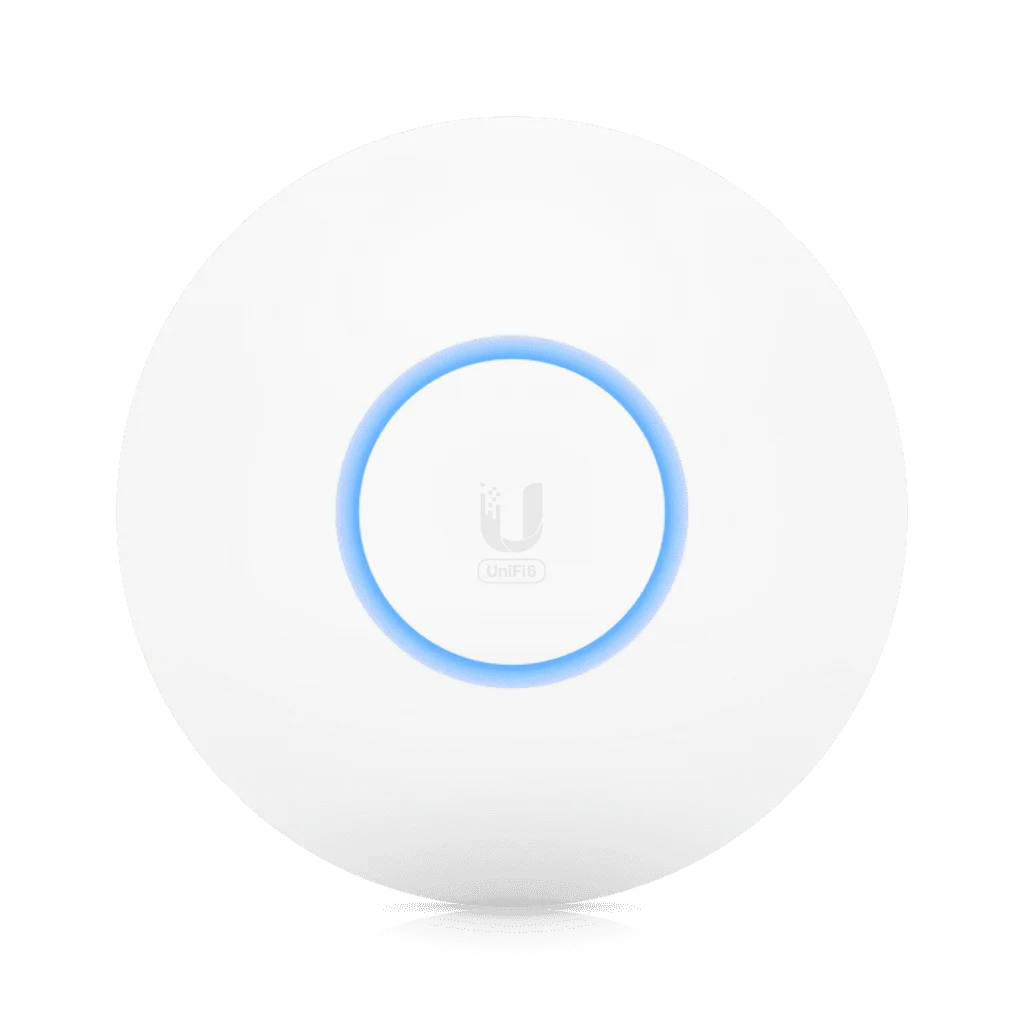

Ubiquiti UniFi WiFi 6 Lite Access Point (U6-Lite)
KSh 19,000.00 (EX.Vat)
Key Features
1. Advanced WiFi 6 Technology
- Dual-Band Support: Simultaneous 2.4 GHz and 5 GHz operation.
- High Speeds: Up to 300 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz.
- MIMO Capabilities:
- 2×2 SU-MIMO for 2.4 GHz
- 2×2 DL/UL MU-MIMO for 5 GHz
2. Compact, Versatile Design
- Low-Profile Form Factor: Blends seamlessly into any environment.

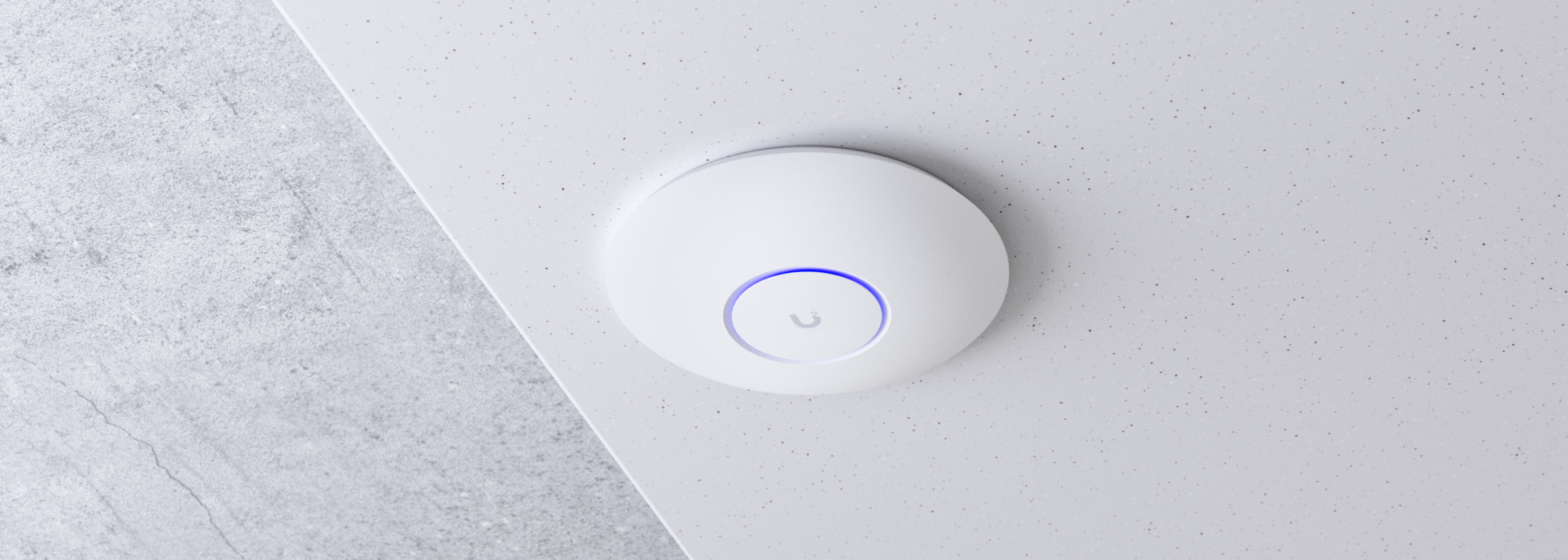

- Mounting Options: Wall or ceiling mount (hardware included).
3. Power over Ethernet (PoE) Support
- Powered via PoE (Passive 48V), simplifying installation by eliminating the need for a separate power adapter.
- Compatible with UniFi PoE switches or 48V, 0.32A PoE adapters.
4. Wide Device Connectivity
- Supports 300+ Concurrent Clients for high-density environments.
- Ideal for homes, small offices, and low-traffic commercial spaces.
5. Reliable Wireless Security
- Supports WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3) for robust data protection.
6. Easy Network Management
- Fully integrated with UniFi Network Controller for streamlined configuration, monitoring, and troubleshooting.
- Bluetooth Setup: Simplifies installation and initial configuration.
7. Optimized for Performance
- Antenna Gain:
- 2.4 GHz: 2.8 dBi
- 5 GHz: 3 dBi
- Low Power Consumption: Max 12W.
8. Cost-Effective Solution
- A budget-friendly option for upgrading to WiFi 6 without sacrificing quality or performance.
This access point delivers high-speed WiFi 6 connectivity in a compact, easy-to-deploy design, making it perfect for modern homes, small offices, or low-density commercial spaces. Let me know if you’d like guidance on deploying it in your network!
Specifications for Ubiquiti UniFi WiFi 6 Lite Access Point (U6-Lite)
Mechanical Specifications
- Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3″)
- Weight:
- Without Mount: 300 g (10.6 oz)
- With Mount: 315 g (11.1 oz)
- Enclosure Material: Polycarbonate, Aluminum
- Mount Material: Polycarbonate, SGCC Steel
Hardware Features
Networking Interfaces
- (1) GbE RJ45 Port
Management Interfaces
- Ethernet
- Bluetooth
Power Specifications
- Power Method: PoE (Passive PoE, 48V)
- Power Supply: PoE, 48V, 0.32A (PoE Adapter Not Included)
- Supported Voltage Range: 44–57V DC
- Max. Power Consumption: 12W
Performance Specifications
Maximum Transmit Power
- 2.4 GHz: 23 dBm
- 5 GHz: 23 dBm
- 6 GHz: Not Supported
MIMO Capabilities
- 2.4 GHz: 2×2 SU-MIMO
- 5 GHz: 2×2 DL/UL MU-MIMO
- 6 GHz: Not Supported
Maximum Data Rates
- 2.4 GHz: 300 Mbps (BW40)
- 5 GHz: 1.2 Gbps (BW80)
- 6 GHz: Not Supported
Antenna Gain
- 2.4 GHz: 2.8 dBi
- 5 GHz: 3 dBi
- 6 GHz: Not Supported
Environmental Specifications
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Operating Humidity: 5–95% Noncondensing
Certifications
- CE, FCC, IC
Software Features
WiFi Standards
- 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless Security
- WPA-PSK
- WPA-Enterprise (WPA/WPA2/WPA3)
Additional Features
- BSSID: 8 Per Radio
- VLAN Support: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- Concurrent Clients: 300+
Supported Data Rates
802.11a/b/g
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
802.11n
- 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac
- 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9, NSS 1/2, VHT 20/40/80)
802.11ax (WiFi 6)
- 7.3 Mbps to 1.2 Gbps (MCS0 – MCS11, NSS 1/2, HE 20/40/80)
Mounting
- Options: Wall or Ceiling (Mounting Hardware Included)
Application Requirements
- UniFi Network: Version 5.14.3 and Later
Highlights
- Compact, ceiling or wall-mountable design for flexible installation.
- Supports WiFi 6 with up to 1.2 Gbps speeds on 5 GHz for high-performance connectivity.
- Advanced features like VLAN, QoS, and Guest Isolation for network optimization.
- Ideal for home or small office setups requiring robust, reliable wireless coverage.
